Mid America Kustoms

FP400 88HTZ

FP400 88HTZ

Regular price $1,849.00 USD
Regular price $1,849.00 USD Sale price $1,849.00 USD
Sale Sold out
Turbine Housing

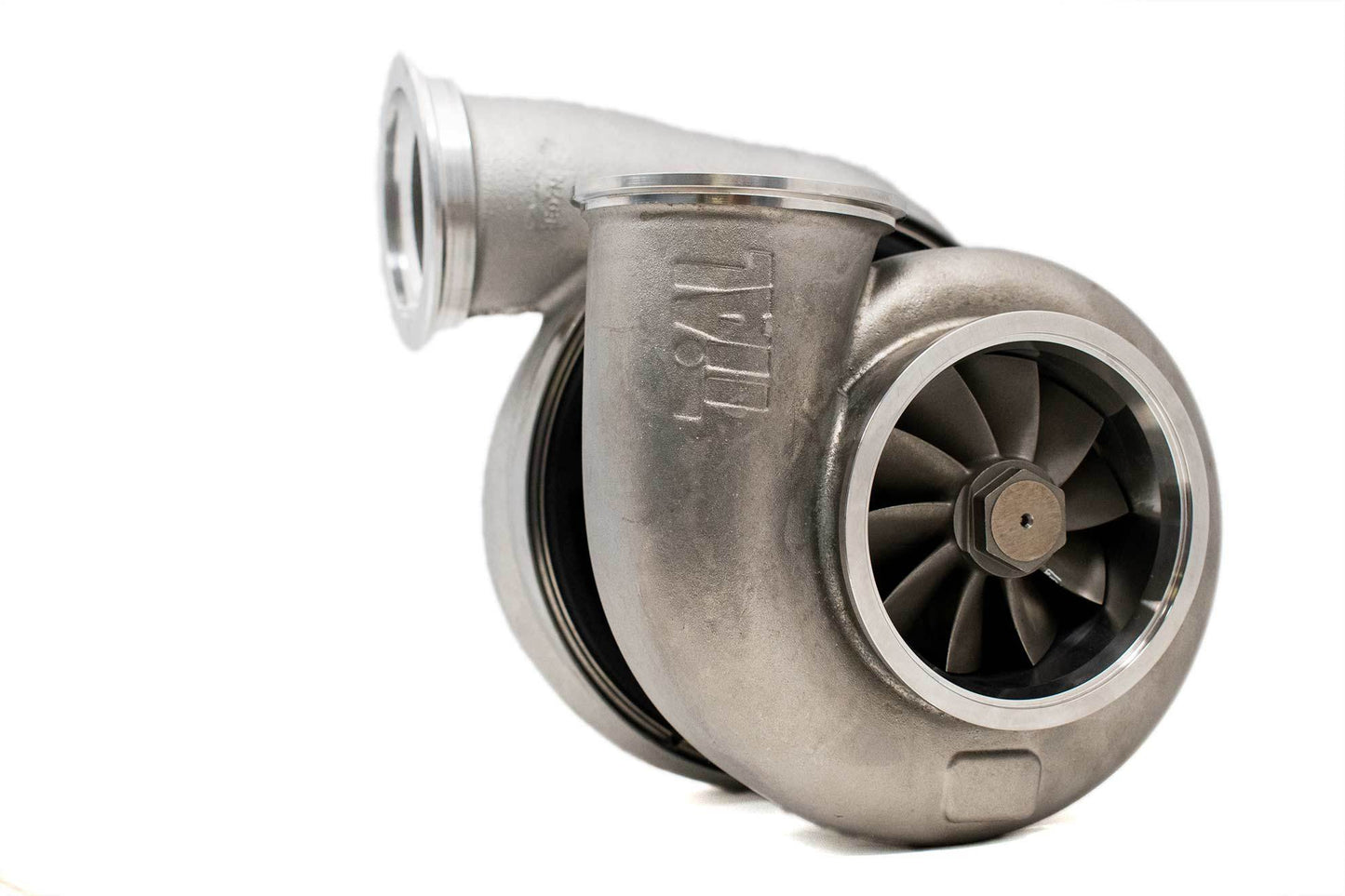

FP400 88HTZ Turbocharger


  • Compressor wheel - 88HTZ
  • Flow rating - 160+LB per minute
  • CW Measurements - 88MM Inducer / 122MM Exducer
  • TW Measurements - 99MM Inducer / 92MM Exducer
  • Compressor Housing - 42R Style Cover
  • Turbine Housing - S400 99MM Compatible
  • CHRA - BW Oil Cooled Journal Bearing

  • For serious performance, you need serious components. That's why we're offering the FP400 line of large frame turbochargers. We've taken the heavy hitting, super reliable Borg Warner S400 series and severely improved it.

    We start with a genuine BW S400 CHRA and tear it down to basic components. We coat the bearing housing to reduce rust and corrosion. Then the thrust bearing is replaced with a full circle oversized pad bearing that is steel on steel for the slowest wearing bearing possible. The journal bearings are also replaced with higher flowing oil ported versions to aid in keeping the bearings cool under heavy loads. All the rotating parts are zero balanced and then assembled with the newest HTZ compressor aero wheels that are made 100% in the USA, and the assembly is balanced a final time to verify the perfect nature of the CHRA in its assembled state. To ensure long life for this turbo, use a -6 oil supply line.

    The XR400 88HTZ utilizes our new, larger FP92 turbine wheel and flows 160+ lbs/min.
